编程与调试 -- Resource Hacker 修改 PE 描述信息

同样的代码发布三个版本,不同的描述信息,不同的签名,太麻烦!

  1. 构建一个,拷贝一下,然后手工改 PE 文件描述信息,手工打签名。麻烦!
  2. 构建两次,选择不同的构建配置。时间!时间!

pecopy.exe 解决你的烦恼!自动修改文件描述信息!下载地址:https://sunocean.life/tools/ https://sunocean.life/tools/pecopy.exe

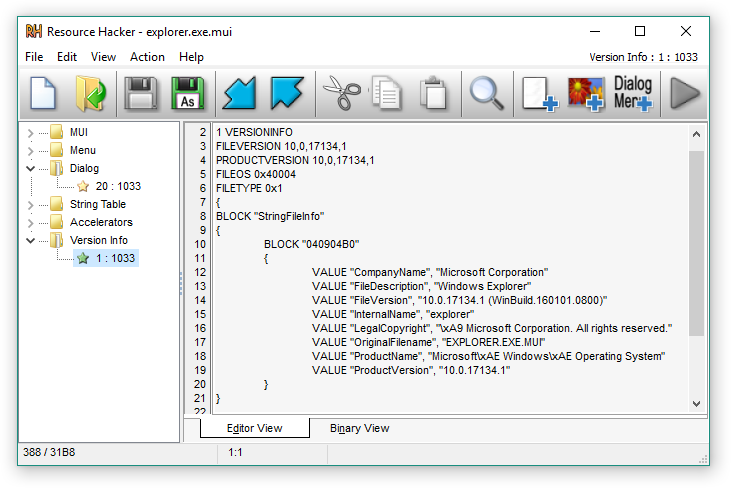

Resource Hacker

图形界面版本。

pecopy.exe

pecopy.exe 解决你的烦恼,通过配置构建生成后事件,同时完成拷贝和修改描述信息,最后签名。

  1. 一气呵成,不用介入。
  2. 避免构建多次,崩溃点都变了。

使用文档:

usage: "pecopy.exe" [-h] [-mcn COMPANYNAME] [-mfd FILEDESCRIPTION]
                  [-mvc FILEVERSION] [-min INTERNALNAME] [-mlc LEGALCOPYRIGHT]
                  [-mof ORIGINALFILENAME] [-mpn PRODUCTNAME]
                  [-mpv PRODUCTVERSION] [-icon ICONFILE] [-mask ICONMASK]
                  [-mcp CODEPAGE] -in INPUTFILE -out OUTPUTFILE [-debug DEBUG]

optional arguments:
  -h, --help            show this help message and exit
  -mcn COMPANYNAME, --CompanyName COMPANYNAME
                        示例:酷哦软件科技有限公司
  -mfd FILEDESCRIPTION, --FileDescription FILEDESCRIPTION
                        示例:酷哦工具箱好帮手
  -mvc FILEVERSION, --FileVersion FILEVERSION
                        示例:2021,08,05,123
  -min INTERNALNAME, --InternalName INTERNALNAME
                        示例:toolhelper
  -mlc LEGALCOPYRIGHT, --LegalCopyright LEGALCOPYRIGHT
                        示例:酷哦软件科技有限公司
  -mof ORIGINALFILENAME, --OriginalFilename ORIGINALFILENAME
                        示例:tool.exe
  -mpn PRODUCTNAME, --ProductName PRODUCTNAME
                        示例:酷哦工具箱
  -mpv PRODUCTVERSION, --ProductVersion PRODUCTVERSION
                        示例:1,0,0,123
  -icon ICONFILE, --IconFile ICONFILE
                        示例:mainicon.ico
  -mask ICONMASK, --IconMask ICONMASK
                        示例:ICONGROUP,107,2052(同时多个用半角分号隔开)
  -mcp CODEPAGE, --CodePage CODEPAGE
                        示例:65001
  -in INPUTFILE, --InputFile INPUTFILE
                        示例:tool.exe
  -out OUTPUTFILE, --OutputFile OUTPUTFILE
                        示例:shsign\tool.exe
  -debug DEBUG, --Debug DEBUG

示例 1 修改版权

C:\test>"pecopy.exe" -in "fastvc.exe" \
                     -out "shsign\fastvc.exe" \
                     --LegalCopyright "版权测试"

构建机构建完成,直接上去拿改好并签好名的文件即可。

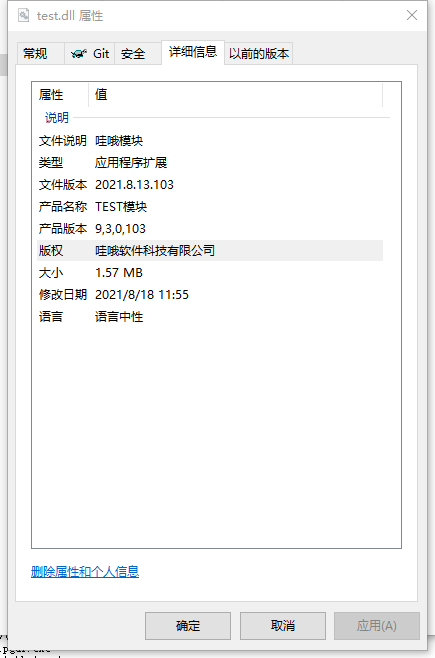

示例 2 修改描述信息

"pecopy.exe" -in "$(TargetDir)\test.dll" \
             -out "$(TargetDir)\shsign\test.dll" \
             -mpn "TEST 模块" \
             -mcn "哇哦软件科技有限公司" \
             -mfd "哇哦模块" \
             -mlc "哇哦软件科技有限公司"

已知缺陷:语言都会变成中性。这个应该影响不大。 如果此方案有帮助到项目组,记得豹趣积分打到 quanhai 账上。^_^

示例 3 修改图标

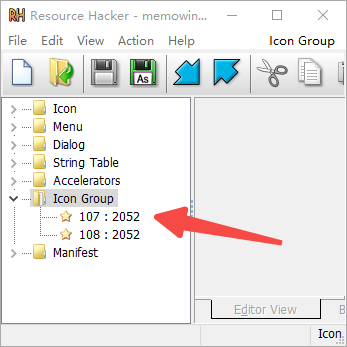

先要用 resourcehacker 看好要替换图标的 mask 是多少,比如:ICONGROUP,107,2052

"pecopy.exe" -in "pecopy.exe" \
             -out "..\..\dist\pecopy.exe" \
             -icon "..\image\icon\iconall\shitou.ico" \
             -mask ICONGROUP,107,2052

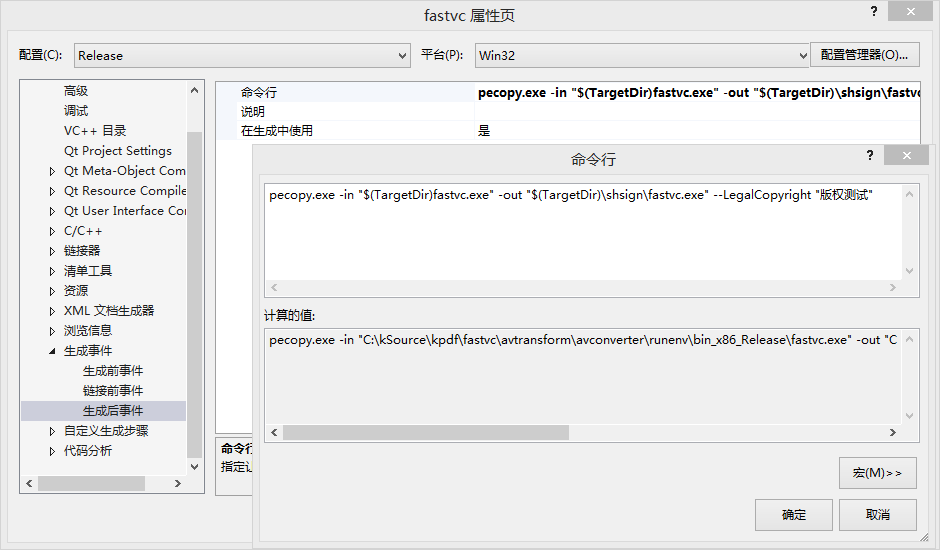

配置构建生成后任务

  1. 把 pecopy.exe 入库到工程合适目录(建议入到 git,这样本机和构建机可以同时完成 pecopy)。
  2. tempdir 添加到根 .gitignore
  3. 配置生成后事件(一般根据工程当前的工程目录然后找到 pecopy.exe 的相对路径):
    "pecopy.exe" -in "$(TargetDir)fastvc.exe" \
              -out "$(TargetDir)shsign\fastvc.exe" \
              --LegalCopyright "版权测试"


下载地址:https://sunocean.life/tools/ https://sunocean.life/tools/pecopy.exe

其它

2022-04-25 制作新版本,生成的文件会自动移除签名。

如果存在签名,修改描述前,最后用 VS 自带工具 signtool.exe 移除签名先。

signtool.exe remove /s target.dll

PE 文件的校验和(CheckSum)

note IMAGE_OPTIONAL_HEADER.CheckSum 为一个 DWORD(64 位下也是 DWORD)型的校验值,用于检查 PE 文件的完整性,在一些内核模式驱动及 DLL 中,该值必须是存在且正确的。

校验值的计算很简单:

  1. 将 IMAGE_OPTIONAL_HEADER.CheckSum 清 0(因为这部分在文件中也是有值的,计算时得去掉)
  2. 以 WORD 为单位对数据块进行累加,记住要用 adc 指令而不是 add。
  3. 将累加和加上文件的长度(还是用 adc)

将计算结果与 IMAGE_OPTIONAL_HEADER.CheckSum 进行比较,不相等则说明文件被修改过或不完整。

ImageHlp Image Modification Functions https://docs.microsoft.com/zh-cn/windows/win32/debug/imagehlp-functions?redirectedfrom=MSDN

#include <windows.h>
#include<ImageHlp.h>
#pragma comment(lib, "ImageHlp.lib")

void main()
{
    DWORD HeaderCheckSum = 0;   // PE 头里的校验值
    DWORD CheckSum = 0;         // 计算下来的校验值
    MapFileAndCheckSum(L"C:\\Users\\q4692\\Desktop\\ObjectHook.sys", &HeaderCheckSum, &CheckSum);

    if (CheckSum == HeaderCheckSum)
    {
        MessageBox(NULL, L"相等", NULL, 0);
    }
}

uint32_t calc_checksum(uint32_t checksum, void *data, int length) {
    if (length && data != nullptr) {
        uint32_t sum = 0;
        do {
            sum = *(uint16_t *)data + checksum;
            checksum = (uint16_t)sum + (sum >> 16);
            data = (char *)data + 2;
        } while (--length);
    }

    return checksum + (checksum >> 16);
}

uint32_t generate_pe_checksum(void *file_base, uint32_t file_size) {
    uint32_t file_checksum = 0;
    PIMAGE_NT_HEADERS nt_headers = ImageNtHeader(file_base);
    if (nt_headers) {
        uint32_t header_size = (uintptr_t)nt_headers - (uintptr_t)file_base +
            ((uintptr_t)&nt_headers->OptionalHeader.CheckSum -
            (uintptr_t)nt_headers);
        uint32_t remain_size = (file_size - header_size - 4) >> 1;
        void *remain = &nt_headers->OptionalHeader.Subsystem;
        uint32_t header_checksum = calc_checksum(0, file_base, header_size >> 1);
        file_checksum = calc_checksum(header_checksum, remain, remain_size);
        if (file_size & 1){
            file_checksum += (uint16_t)*((char *)file_base + file_size - 1);
        }
    }

    return (file_size + file_checksum);
}

from pyinstaller

def set_exe_checksum(exe_path):
    """Set executable's checksum in its metadata.
    This optional checksum is supposed to protect the executable against
    corruption but some anti-viral software have taken to flagging anything
    without it set correctly as malware. See issue #5579.
    """
    import pefile
    pe = pefile.PE(exe_path)
    pe.OPTIONAL_HEADER.CheckSum = pe.generate_checksum()
    pe.close()
    pe.write(exe_path)

# You can use pe.verify_checksum() to verify that it is correct
# https://github.com/pyinstaller/pyinstaller/blob/master/PyInstaller/utils/win32/winutils.py
# https://github.com/pyinstaller/pyinstaller/blob/master/tests/functional/test_basic.py
# https://github.com/pyinstaller/pyinstaller/blob/master/PyInstaller/building/api.py
# Step 3: post-processing
if is_win:
    # Set checksum to appease antiviral software. Also set build timestamp to current time to increase entropy
    # (but honor SOURCE_DATE_EPOCH environment variable for reproducible builds).
    logger.info("Fixing EXE headers")
    build_timestamp = int(os.environ.get('SOURCE_DATE_EPOCH', time.time()))
    winutils.set_exe_build_timestamp(build_name, build_timestamp)
    winutils.update_exe_pe_checksum(build_name)

def fixup_exe_headers(exe_path, timestamp=None):
    """
    Set executable's checksum and build timestamp in its headers.

    This optional checksum is supposed to protect the executable against corruption but some anti-viral software have
    taken to flagging anything without it set correctly as malware. See issue #5579.
    """
    import pefile
    pe = pefile.PE(exe_path, fast_load=False)  # full load because we need all headers
    # Set build timestamp.
    # See: https://0xc0decafe.com/malware-analyst-guide-to-pe-timestamps
    if timestamp is not None:
        timestamp = int(timestamp)
        # Set timestamp field in FILE_HEADER
        pe.FILE_HEADER.TimeDateStamp = timestamp
        # MSVC-compiled executables contain (at least?) one DIRECTORY_ENTRY_DEBUG entry that also contains timestamp
        # with same value as set in FILE_HEADER. So modify that as well, as long as it is set.
        debug_entries = getattr(pe, 'DIRECTORY_ENTRY_DEBUG', [])
        for debug_entry in debug_entries:
            if debug_entry.struct.TimeDateStamp:
                debug_entry.struct.TimeDateStamp = timestamp
    # Set PE checksum
    pe.OPTIONAL_HEADER.CheckSum = pe.generate_checksum()
    pe.close()
    pe.write(exe_path)

如何移除已经签章的驱动程式

https://steward-fu.github.io/website/driver/wdm/remove_sign.htm

#include <stdafx.h>
#include <windows.h>
#include <imagehlp.h>

#pragma comment(lib, "Imagehlp.lib")

int main(int argc, char** argv)
{
    HANDLE hFile;

    hFile = CreateFile(argv[1], GENERIC_READ | GENERIC_WRITE, 0, NULL, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, NULL);
    ImageRemoveCertificate(hFile, 0);
    CloseHandle(hFile);
    return 0;
}

C/C++ 实现 PE 文件特征码识别

#include <iostream>
#include <windows.h>

// 函数 MakeSureDirectoryPathExists() 所需头文件和 lib 库
#include <ImageHlp.h>
#pragma comment(lib, "imagehlp.lib")

int main()
{
    // 在 C 盘创建名为“test”文件夹,并在 test 文件夹下再创建名为“1203”的文件夹。
    int flag; // 保存返回值。如果目录存在,返回 TRUE;如果不存在但全部路径创建成功,返回 TRUE;如果不存在且创建失败,返回 FALSE。
    flag = MakeSureDirectoryPathExists("E:\\test\\1203\\");

    std::cout << "flag = " << flag << std::endl;
    return 0;
}

多个 png 图片压缩成一个 ico

CMakeLists.txt

cmake_minimum_required(VERSION 3.10.2)
project(icopack)
add_executable(icopack icopack.cpp)
# cmake .. -G "Visual Studio 16 2019" -A Win32

icopack.cpp

编译好的,方便直接食用:icopack.zip (65K) 多张 png 图片压缩成一个 ico 文件,参考代码:

icopack out.ico favicon1.png favicon2.png favicon3.png

//
// icopack - pack multiple PNG images into an ICO file
//
// Copyright (c) 2021 Optidash GmbH
//
// Licensed under the GNU General Public License, Version 3 (the "License");
// you may not use this file except in compliance with the License.
//
// You may obtain a copy of the License at
//    https://www.gnu.org/licenses/gpl-3.0.en.html
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

#include <stdint.h>
#include <string.h>
#include <stdio.h>
#include <stdlib.h>

int get_png_info(unsigned char *pIn, int iSize, int *width, int *height, int *bpp)
{
    int w, h, i, j, bits=0;
    if (pIn[0] != 0x89 || pIn[1] != 0x50 || pIn[2] != 0x4e || pIn[3] != 0x47) {
        // PNG signature not present - not a PNG file
        return 1;
    }
    // Parse enough of the PNG file to get to the image header (IHDR) to get
    // the image size and bit depth
    w = (pIn[16] << 24) | (pIn[17] << 16) | (pIn[18] << 8) | pIn[19];
    h = (pIn[20] << 24) | (pIn[21] << 16) | (pIn[22] << 8) | pIn[23];
    i = pIn[24]; // bits per pixel
    j = pIn[25]; // pixel type
    switch (j) {
        case 0: // grayscale
        case 3: // palette image
            bits = i;
            break;
        case 2: // RGB triple
            bits = i * 3;
            break;
        case 4: // grayscale + alpha channel
            bits = i * 2;
            break;
        case 6: // RGB + alpha
            bits = i * 4;
            break;
    }
    *width = w; *height = h; *bpp = bits;
    return 0;
} /* get_png_info() */
//
// Main program entry point
//
int main(int argc, char *argv[])
{
    int i, j, iSize, iFileCount;
    int width, height, bpp;
    int iOffset;
    FILE *ihandle, *ohandle;
    unsigned char *pIn;
    unsigned char ucTemp[512];

    if (argc < 3 || argc > 16)
    {
        printf("icopack Copyright (c) 2021 Optidash GmbH\n");
        printf("Combines multiple PNG images into a single ICO file\n");
        printf("Source images must be <= 256 pixels in each dimension\n\n");
        printf("Usage: icopack <outfile> <infile_1> <infile_2> <infile_N>\n");
        printf("example:\n\n");
        printf("icopack out.ico favicon1.png favicon2.png favicon3.png\n");
        return 0; // no filenames passed
    }
    iFileCount = argc - 2;
    ohandle = fopen(argv[1], "w+b");
    if (ohandle == NULL) {
        fprintf(stderr, "Unable to open output file: %s\n", argv[1]);
        return -1; // bad filename passed
    }
    // write an empty header; we'll fill it in later
    fwrite(ucTemp, 1, 6 + (iFileCount * 16), ohandle);
    ucTemp[0] = 0; // ICONDIR structure starts with 0,0
    ucTemp[1] = 0;
    ucTemp[2] = 1; // ICON file (2 = cursor file)
    ucTemp[3] = 0; // 2-byte int
    ucTemp[4] = (unsigned char)iFileCount;
    ucTemp[5] = 0; // 2-byte int
    iOffset = 6 + (iFileCount * 16); // starting offset of first file data
    for (i=2; i<argc; i++) { // collect all of the input files
        ihandle = fopen(argv[i],"rb");
        if (ihandle == NULL)
        {
            fprintf(stderr, "Unable to open input file: %s\n", argv[i]);
            return -1; // bad filename passed
        }
        fseek(ihandle, 0L, SEEK_END); // get the file size
        iSize = (int)ftell(ihandle);
        fseek(ihandle, 0, SEEK_SET);
        pIn = (unsigned char*)malloc(iSize);
        if (pIn == NULL) {
            fprintf(stderr, "Memory allocation error: size = %d\n", iSize);
            return -1; // bad filename passed
        }
        fread(pIn, 1, iSize, ihandle);
        if (get_png_info(pIn, iSize, &width, &height, &bpp)) {
            fprintf(stderr, "Input files must be PNG; exiting...\n");
            return -1; // bad filename passed
        }
        if (width > 256 || height > 256) {
            fprintf(stderr, "image files cannot be larger than 256x256; exiting...\n");
            return -1; // bad filename passed
        }
        // Fill in ICONDIRENTRY for this image
        j = 6 + (i-2) * 16;
        ucTemp[j] = (unsigned char)width;
        ucTemp[j+1] = (unsigned char)height;
        if (bpp < 8)
            ucTemp[j+2] = (1 << bpp); // number of colors
        else if (bpp == 8)
            ucTemp[j+2] = 255;
        else
            ucTemp[j+2] = 0; // non-palette image
        ucTemp[j+3] = 0; // reserved
        ucTemp[j+4] = 1; // color planes
        ucTemp[j+5] = 0; // 2-byte int
        ucTemp[j+6] = bpp;
        ucTemp[j+7] = 0; // 2-byte int
        *(uint32_t *)&ucTemp[j+8] = iSize; // image file size
        *(uint32_t *)&ucTemp[j+12] = iOffset; // offset to this image
        iOffset += iSize;
        // Write this image to the output file
        fwrite(pIn, 1, iSize, ohandle);
        free(pIn);
        fclose(ihandle);
    }
    // Seek to the beginning and update the ICONDIR and ICONDIRENTRY structures
    fseek(ohandle, 0, SEEK_SET);
    fwrite(ucTemp, 1, 6 + (iFileCount * 16), ohandle);
    fclose(ohandle);
    return 0;
} /* main() */

icopack.py

单张图片自动生成 (16, 20, 24, 32, 40, 48, 64, 128, 256,) 各个级别的图片,然后压缩成一个 ico 文件。 如果图片不透明,顺便加一个圆角边框。参考代码:

#encoding=utf8
import re, os, sys
reldirx, _lidir = "", []
while not _lidir and len(reldirx) <= 100:
    reldirx += "../"
    checkfunc = lambda idir: os.path.exists(reldirx+idir+"/pythonx/funclib.py")
    _lidir = [reldirx+idir for idir in os.listdir(reldirx) if checkfunc(idir)]
    if _lidir: reldirx = _lidir[0]
sys.path.append(reldirx)
from pythonx.funclib import *

from PIL import Image, ImageDraw

# https://stackoverflow.com/questions/11287402/how-to-round-corner-a-logo-without-white-backgroundtransparent-on-it-using-pi
def addCorners(im, rad):
    rad = max(rad, 3) # 防御。
    circle = Image.new('L', (rad * 2, rad * 2), 0)
    draw = ImageDraw.Draw(circle)
    draw.ellipse((0, 0, rad * 2, rad * 2), fill=255)
    alpha = Image.new('L', im.size, 255)
    w, h = im.size
    alpha.paste(circle.crop((0, 0, rad, rad)), (0, 0))
    alpha.paste(circle.crop((0, rad, rad, rad * 2)), (0, h - rad))
    alpha.paste(circle.crop((rad, 0, rad * 2, rad)), (w - rad, 0))
    alpha.paste(circle.crop((rad, rad, rad * 2, rad * 2)), (w - rad, h - rad))
    im.putalpha(alpha)
    return im

# https://docs.microsoft.com/en-us/windows/win32/uxguide/vis-icons
def mainfile(fpath, fname, ftype):
    if not ftype in ("png", "jpg",):
        return

    if fpath.find("tempdir") != -1:
        return

    img = Image.open(fpath)
    if img.mode == "RGB":
        print("addCorners", fpath)
        #img = img.convert('RGBA')
        img = addCorners(img, int(img.size[0] / 8))

    assert img.mode == "RGBA", img.mode
    alpha = img.split()[-1]
    total = 0
    width, height = alpha.size
    for x in range(width):
        for y in range(height):
            total += alpha.getpixel((x, y))
    if total == width * height * 255:
        print("addCorners", fpath)
        img = img.convert('RGB')
        img = addCorners(img, int(img.size[0] / 8))

    imglist = []
    for size in (16, 20, 24, 32, 40, 48, 64, 128, 256,):
        newsize = (size, size)
        # 用于表示改变图像过程用的差值方法。0:双线性差值。1:最近邻居法。2:双三次插值法。3:面积插值法。
        #print(Image.BICUBIC) # 3
        #print(Image.ANTIALIAS) # 1
        temp = img.resize(newsize, resample=2)
        local = os.path.join("tempdir", "icopack", fname, "%dx%d.png" % (size, size))
        writefile(local, "")
        osremove(local)
        temp.save(local)
        imglist.append(local)

    target = fpath[:-4] + ".ico"
    icodir = os.path.split(os.path.abspath(__file__))[0]
    icopack = os.path.join(icodir, "icopack.exe")
    cmdx = "\"{}\" ".format(icopack,) + target + " " + " ".join(imglist)
    os.system(cmdx)

def main(rootdir):
    print("rootdir", rootdir)
    searchdir(rootdir, mainfile)

if __name__ == "__main__":
    main(".")
    main(os.path.split(os.path.abspath(__file__))[0])

看起来很优秀,没有试过的代码:

def bake_one_big_png_to_ico(sourcefile, targetfile, sizes=None):
    """Converts one big PNG into one ICO file.

    args:
        sourcefile (str): Pathname of a PNG file.
        targetfile (str): Pathname of the resulting ICO file.
        sizes (list of int): Requested sizes of the resulting
            icon file, defaults to [16, 32, 48].

    Use this function if you have one big, square PNG file
    and don’t care about fine-tuning individual icon sizes.

    Example::

        sourcefile = "Path/to/high_resolution_logo_512x512.png"
        targetfile = "Path/to/logo.ico"
        sizes = [16, 24, 32, 48, 256]
        bake_one_big_png_to_ico(sourcefile, targetfile, sizes)
    """
    if sizes is None:
        sizes = [16, 32, 48]
    icon_sizes = [(x, x) for x in sizes]
    Image.open(sourcefile).save(targetfile, icon_sizes=icon_sizes)

others

  • pecopy.exe – PE 文件修改工具
  • pesearch.exe – 二进制检索工具,输出报告。
  • pereplace.exe – 二进制替换工具
  • pecheck.exe – 二进制检查工具,进程退出码(-1),如果检查通过,进程退出码(0),方便集成到 vs 里面。
    usage: pecheck.exe [-h] --jsonconfig JSONCONFIG --rootdir ROOTDIR
    pecheck.exe: error: the following arguments are required: --jsonconfig, --rootdir

    • 配置构建后事件:..\..\bin\pecheck.exe --jsonconfig="..\..\config\pesearch.json" --rootdir="$(TargetPath)"

参考资料快照
参考资料快照

本文短链接:
If you have any questions or feedback, please reach out .
